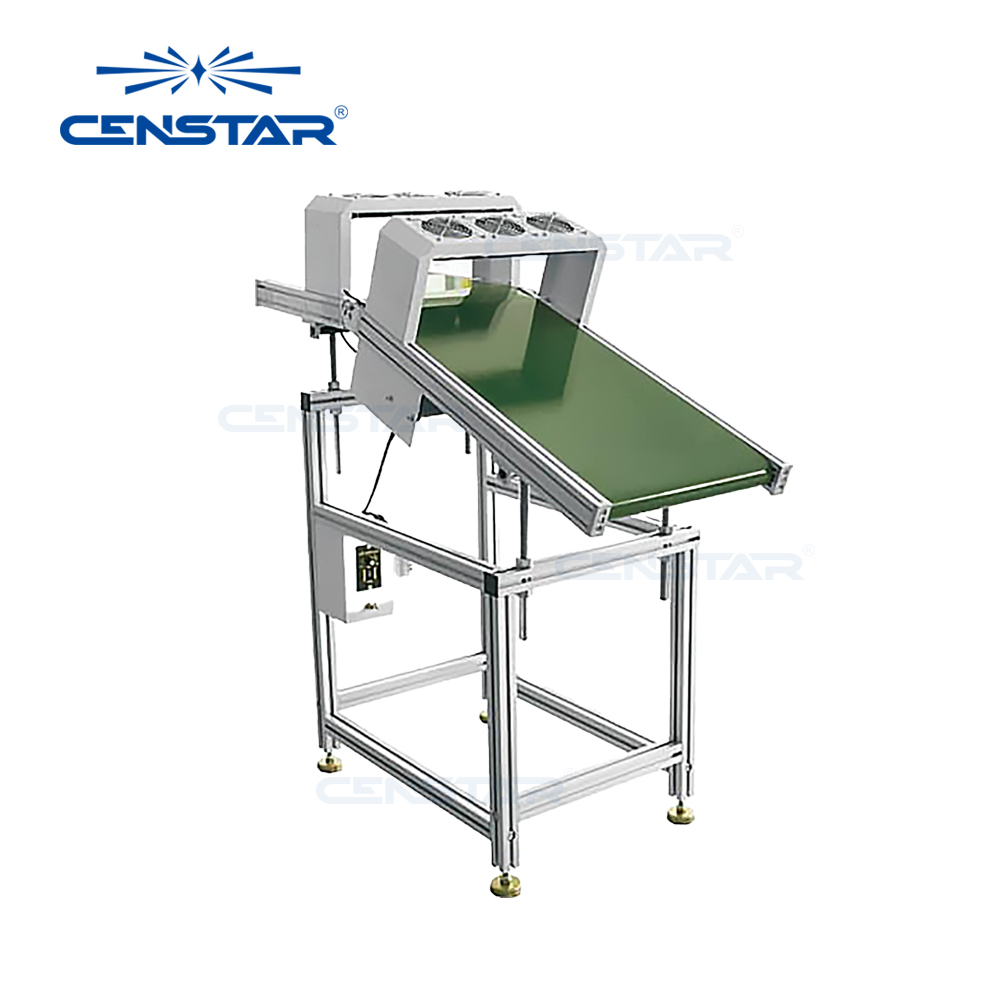

DIP Outfeed Conveyor-Belt
DIP Handling Series >

DIP Outfeed Conveyor-Belt

    • Features:

    1.Aluminum conveying guide rail.

    2.Adjustable speed.

    3.Adjustable angle.

    4.Equipped with 2 groups of cooling fan.

    Description

    This unit is used to transport PCB and pallet for electronical production assembly line.

    Technical Parameters

    ModelUB-400UB-500
    Dimension(L*W*H)1200*520*1400mm1200*620*1400mm
    PCB size(L*W)50*50-445*350mm50*50-530*460mm
    Transport height750~1200±20mm
    Transfer directionL-R or R-L
    Operation sideFront of the machine
    Fixed rail Front of the machine
    Conveyor belts ESD belt
    Belt speed0-4000mm/min adjustable
    PCB edge support5mm
    PCB weight5kg max
    Power supplyAC220V/110V, 50/60 HZ, 1 phase
    Power consumption100VA max. or specify
    Weight35kg45kg
