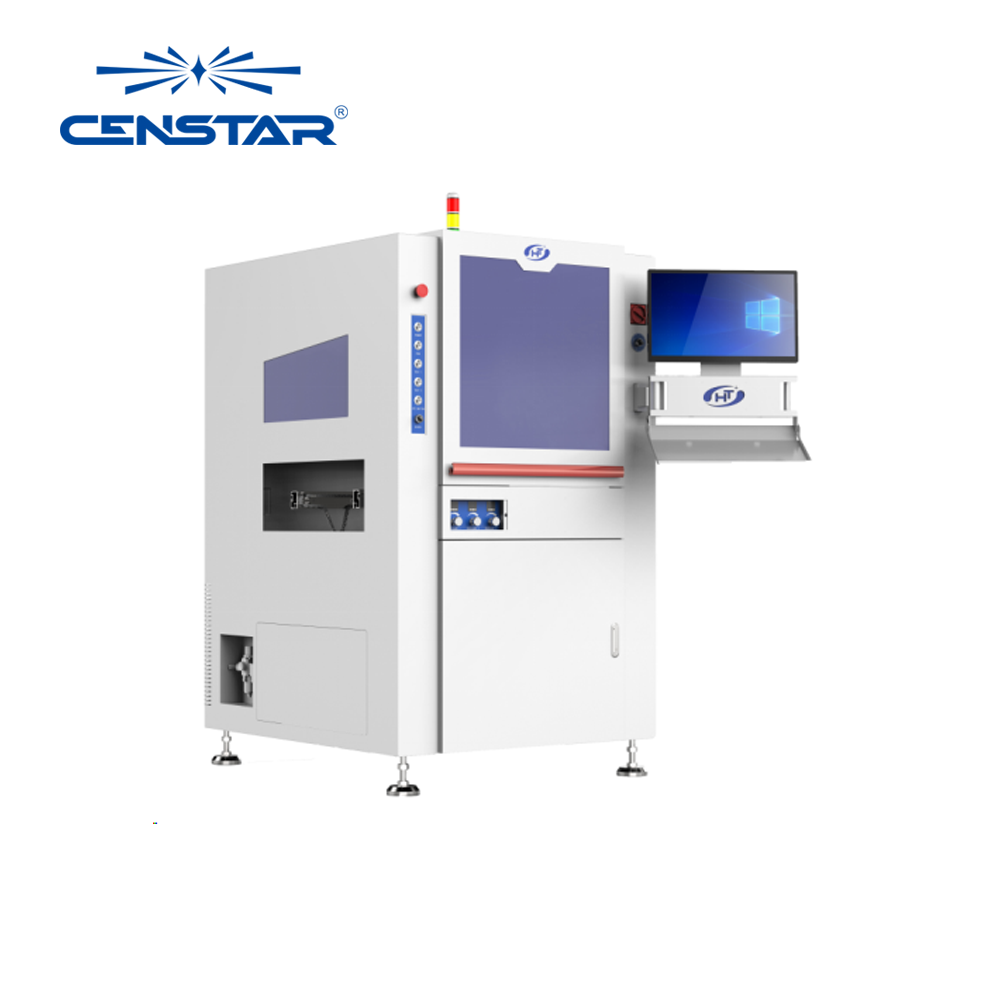

| Model | HTF-650B |
| Dimension(L*W*H) | 1200*1400*1766mm |
| Control method | Ling Hua Industrial Computer+Gugao Motion Control Card |
| Running software | Conformal coating Control Software+Windows 7 System |
Programming mode | There is a trajectory map in the programming process, and the mouse and keyboard can be used to speed up the programming; Off-line programmable CAD import |
| Type of drive | Servo motor+Ball screw |
| Number of rails | 1 |
| Transport height | 900±20mm |
| Conveyor speed | 2-5m/min |
| Transport direction | L-R |
| Chain type | 35B Stainless steel chain with stopper extension pin |
| Maximum board weight | 5kg |
| Transmission motor power | 57 series stepping motor |
| Number of axles | X、Y、Z |
| Number of Z-axis valve bodies | Specify(2 or 3 or 4PCS) |
| Z-axis valve body fixing mode | Specify（Side by side, Placed before and after.Others) |
| Maximum distance between two valves in X-axis direction | Specify（180mm, 240mm, 330mm and others) |
Z-axis valve configuration | Specify（Large area spray valve or Small area spray valve or Needle type spray valve or other) |
| Positioning accuracy | ±0.02mm |
| Repetitive positioning accuracy | ±0.02mm |
| X/Y axis maximum moving speed | 800mm/ s |
| Z axis maximum moving speed | 300mm/ s |
| X and Y axis travel | 650*650mm |
| Y-axis amplitude modulation range | 50~650mm |
| Amplitude modulation | Electric control |
| Amplitude modulation speed | 250mm/min |
| Top/Bottom component clearance | TOP 100mm,Bottom 100mm |
| PCB Thinckness | 0.5~4.0mm |
| PCB edge clearance | ≥5mm |
| Small atomization spraying thickness | 10~200μm |
| Small atomization spraying width | 2-30mm |
| Minimum dispensing diameter of needle valve | 1.5mm |
| Feeding system | 10L customized storage barrel +2L cleaning barrel |
| Air pressure | 0.4-0.6Mpa |
| Exhaust mode | Built-in filter+top exhaust |
| Number of exhaust outlet | 1 |
| Exhaust air volume demand | 15m3/min |
| Power supply | AC220V 50～60HZ |
| Total power | 3KW |
| Communication port | SMEMA interface |
| Pressure plate device | Standard configuration |
| Waste liquor recovery | Standard configuration |
