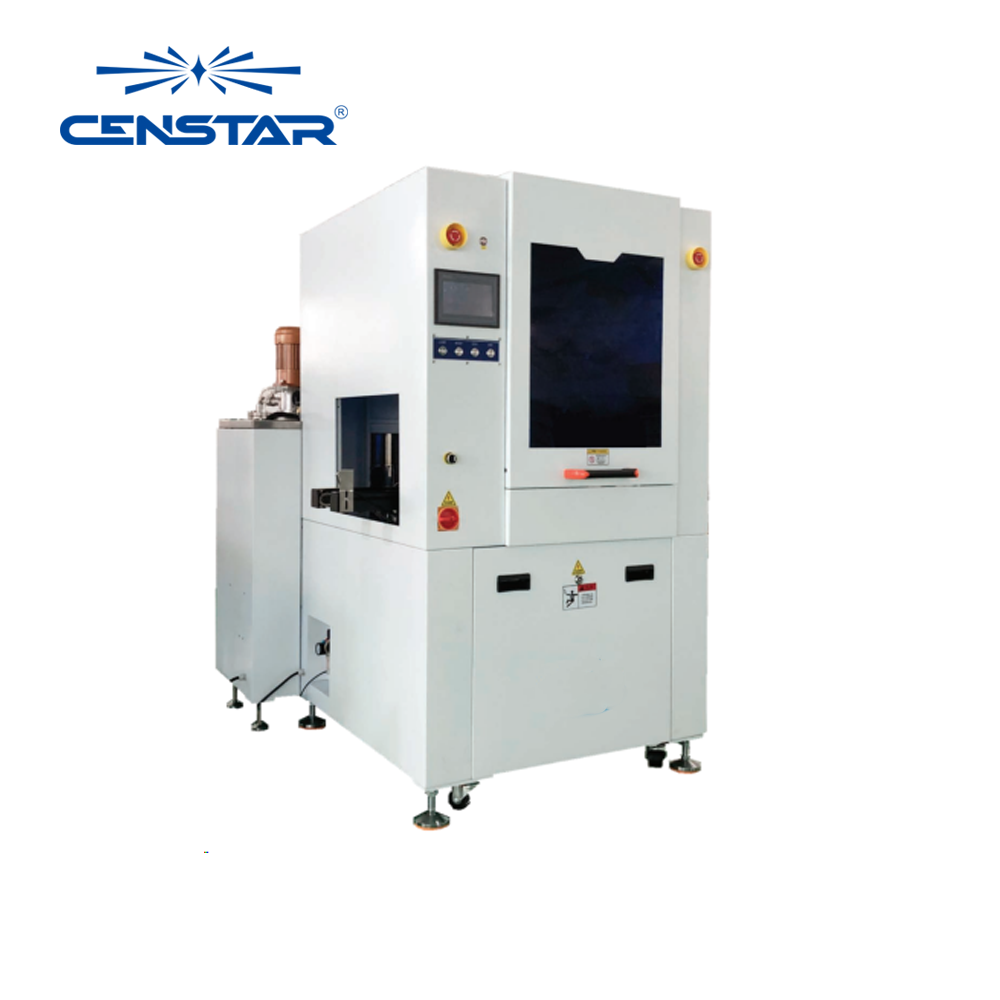

Home >> Products >> Potting machine
| Model | HT-400Z / ZH |
| Dimensions | 1500mmx1200mmx1500mm |
| Software system | Operation Control Software v1.0 |
| Control system | Linghua industrial computer+Gugao motion control card |
| Trip | 500*500*100mm |
| Speed | X/Y/Z Max500mm/S |
| Repeatability accuracy | ±0.1mm |
| Glue out precision | ≤±2% |
| Mixing method | Dynamic and static mixing valves are optional |
| Operable viscosity | <100000PCS |
| Vacuum degree | 1kPa(absolute vacuum value) |
| Vacuum time | According to the requirements of vacuum degree and vacuum pump power is different |
| Auxiliary function | Including vacuum defoaming function,stirring heating,automatic cleaning function can be selected |
| Metering pump body | Stepper motor+gear pump/rotary piston pumpor servo motor+piston pump |
| Mixing ratio | 100:100~100:20 or 100:20~100:10 adjustable |
| Dispensing speed | 1g/sec~15g/sec or 5g/sec ~30g/sec |
| Power Supply | AC380V 50HZ 2.5KW |
| Air source | 0.4MPa---0.8MPa |
| Work environment | Temperature:0-40℃,relative humidity:20-90% |
